EVOLVEO Trail Camera \ Time-lapse Camera StrongVision Mini

StrongVision Mini is a compact trail camera designed primarily for hunters to monitor wildlife. Despite its small size, it can provide robust hardware for recording both photos and videos.

Size matters
With dimensions of 105 x 85 x 40 mm, the camera is suitable for placement in small spaces such as cracks in tree trunks or rocks. Thanks to the mounts, it can also be placed on a tree trunk using a strap.

Day and night
Despite its small size, the trail camera is equipped with an IR illuminator with a wavelength of 850nm, which is particularly suitable for capturing nighttime wildlife images. Thanks to the IR illuminator, the camera records both nighttime black and white photos and black and white nighttime video. Daytime recording is, of course, in color. Switching between day and night mode is fully automatic depending on the intensity of the surrounding light.

Great equipment
Despite its small size, the camera has the same functions as our standard models. The 5Mpix sensor can capture photos at a resolution of up to 20Mpx and video in FullHD quality 1080p. The trigger speed is an optimal 0.8s. The camera has several recording modes, whether a regular photo with adjustable resolution or the Burst function, which captures up to 9 shots in a row. During recording, it is also possible to combine capturing a photo and video in one activation or video alone.

Time-lapse
The device can also be used for recording time-lapse photos, where the recording interval can be set to 5, 10, or 30 minutes. You can use time-lapse, for example, to monitor the progress of your construction or to record from places where it is not possible to use device activation via a PIR sensor.

Settings
Just insert the batteries and turn it on, the trail camera is already preset to the most used mode. Settings can be made using a configuration file on the SD card, which you can do comfortably at home using your computer.

Accessories
The operation of the trail camera can be extended with original EVOLVEO accessories such as a Solar panel or original 230V adapter.

Parameters
Memory: Micro SD Card Max 32GB
Lens: F=3.1; FOV=60 °
Dimensions: 105 mm x 85 mm x 40 mm
LED: 850nm IR
PIR Sensor: Field of view 90°
Number of IR LEDs: 26 LEDs
Maximum IR LED range: 20 meters (ideal illumination up to 6-8m)
Activation speed: 0.8 s
Delay: 1 / 5 / 10 / 30 sec/min
Photo resolution: 20 MP / 16 MP / 12 MP
Burst/sequence of shots: 1 / 3 / 6 / 9
Video resolution: 1080P / 720P/VGA
Recording format: JPEG / AVI
Date and time on photo:  Yes
Stand-by current: 0.02mA
Power supply: 4×AA 1.5V LR6 batteries, External 6V DC (1.2V cells cannot be used)
Water resistance: IP 65

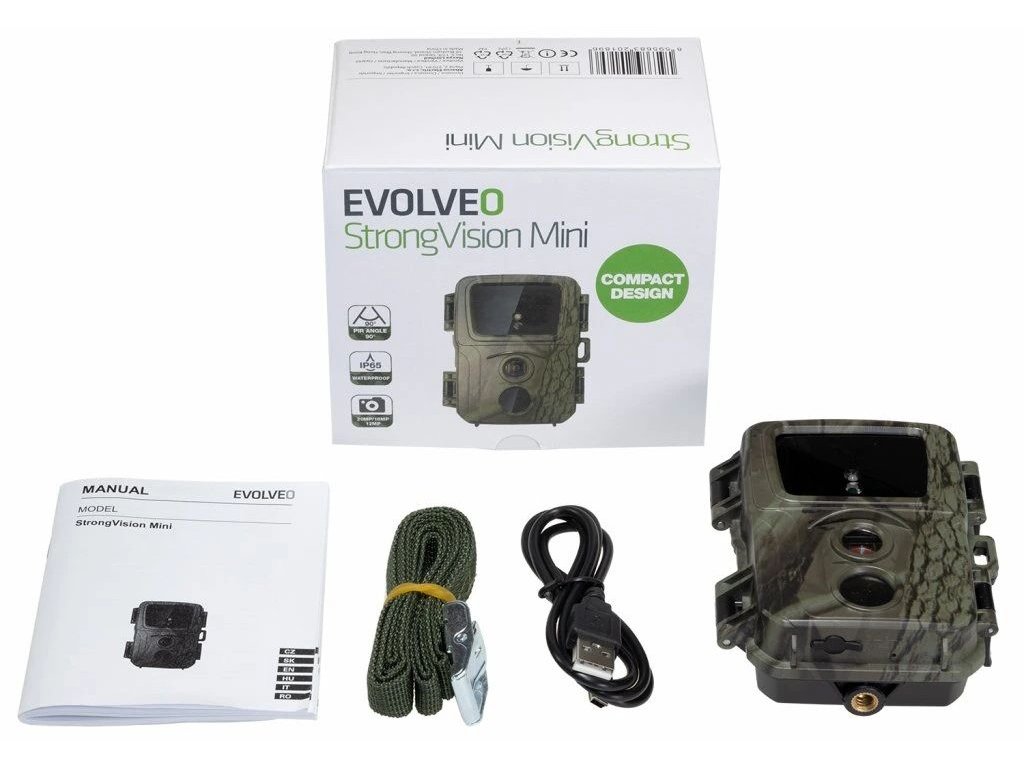

Package contents
» EVOLVEO StrongVision Mini
» Mounting strap
» Micro SD card reader
» User manual
